Rui'an Changhong Printing Machinery Factory
|
High Speed 4 Color Napkin Paper Printing Machines
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Used for napkin paper, serviette, tissue paper, roll paper and so on.
Take it easy, accurate color, long life

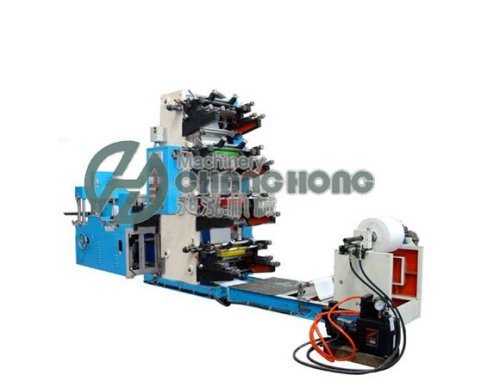

High Speed 4 Color Napkin Paper Printing Machine
Model Item | CH884-250 | CH884-330 | CH884-400 |
Material | 13-30g/m² | ||
Material width | 250mm | 330mm | 400mm |
Printing color | 4 Color | ||
Material specifications | 250×250mm | 250×250mm 330×330mm | 250×250mm 330×330mm 400×400mm |
Register precision | Longitude:±0.20mm Transverse:±0.20mm | ||
Printing length | 200-500mm | 200-760mm | 200-900mm |
Anilox cylinder | 80DK-120DK (Germany made Titanium roller) / (Ceramic Cylinder) 200LPI-500LPI | ||
Printing plate lifting system | Pneumatic press control | ||
Mechanical speed | 80m/min | ||
Printing speed | 60m/min | ||
Output (sheet/hr) | 14400 | 14400 10000 | 14400 10000 9000 |
Rewinder/Unwinder DIA | ø 1000mm/ø 1200mm | ||
Master electric machinery | 3.7KW | 5.5 KW | 5.5KW |
Grind knife Motor | 0.75 KW | 1.1KW | 1.1 KW |
Dryer | 0.75 KW | 1.1 KW | 1.1 KW |
Unwind Motor | 1.1 KW | 1.5KW | 2.2KW |
Tension sensor | 2-10 Kg | 2-15 Kg | 2-20 Kg |
Aridity Mode | 6KW | 8KW | 11KW |
Master power | 12KW | 17KW | 20KW |
Weight | 3000Kg | 3200Kg | 3500 Kg |
Dimension (L×W×H) | 5.2m ×1.55m ×2.2m | 5.3m ×1.60m ×2.2m | 5.4m ×1.70m × |
The main features:
1. Take it easy, accurate color, long life
2. The use of motors, variable frequency speed control, saving electricity, running small fluctuations
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink
4. The use of special diagonal-tooth gear, print size is accurate,
5. There are two sets of heating devices, including central heating and constant temperature control system for packet control
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium
7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced
8 With a cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. The Print produce are clear and good arrangement quality
2. The use of motors, variable frequency speed control, saving electricity, running small fluctuations
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink
4. The use of special diagonal-tooth gear, print size is accurate,
5. There are two sets of heating devices, including central heating and constant temperature control system for packet control
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium
7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced
8 With a cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. The Print produce are clear and good arrangement quality
